Product instruction

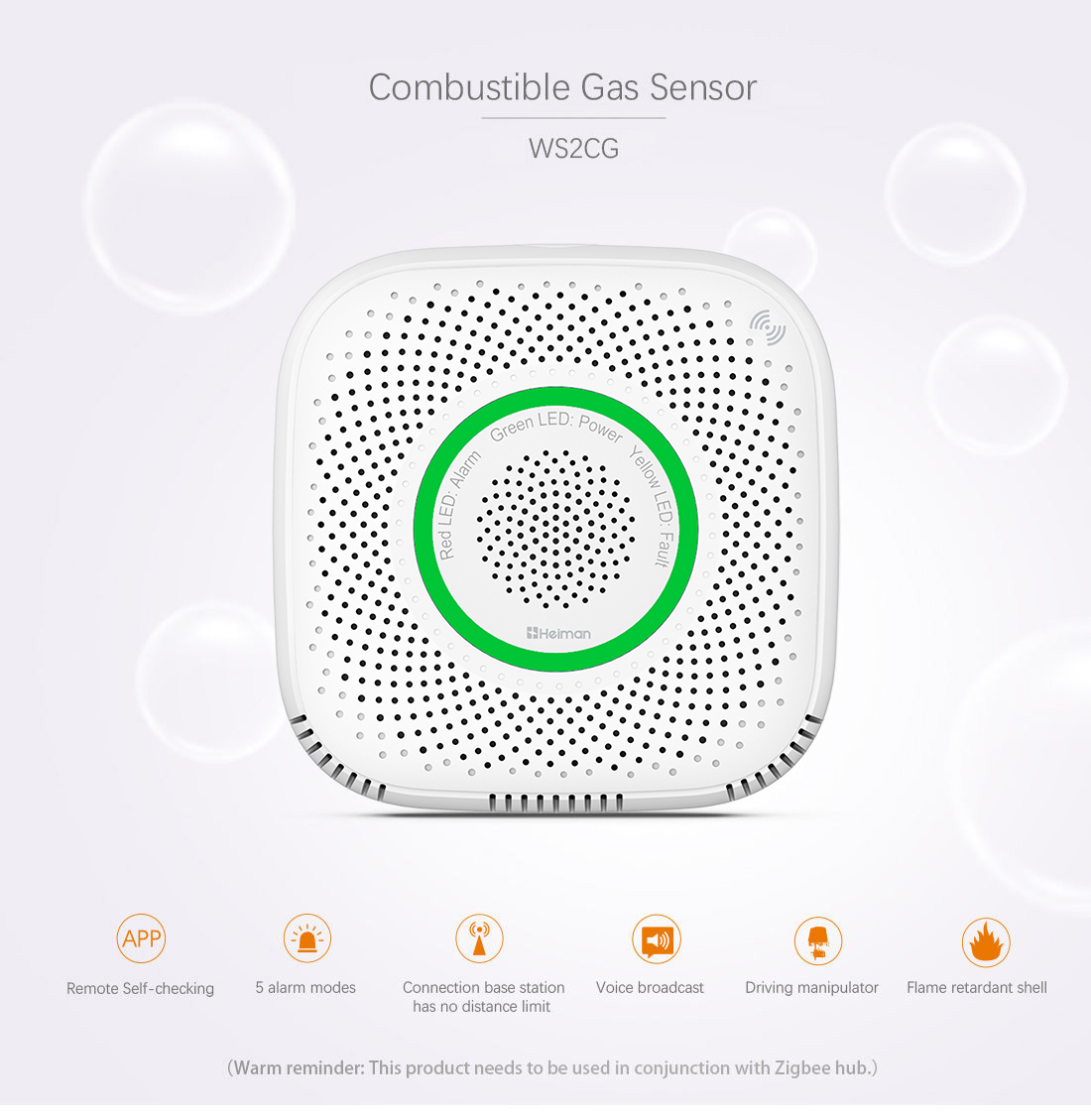

This smart combustible gas sensor (called sensor for short hereinafter),as an individual Natural Gas Sensor of high stable performance, is used to detect natural gas.Its reliable semiconductor gas sensor has a long lifespan and very little sensitivity drift. Advanced WIFI communication technology makes it come true that once the natural gas is detected, real-time notification will be sent to user’s APP remotely. If the detected gas density reaches the alarm level,the red LED indicator will flash and the buzzer will beep to warn the user to handle the emergency timely. And at the same time the valve manipulator will cut off gas valve automatically. This sensor is suitable for indoor places in which natural gas leaking may happen.
Product features
- High stable semiconductor gas sensor
- Smart phone APP can do a remote test
- Easy to operate according to the voice prompt
- Controlled by microprocessor
- Report detected into real-time
- Report product status automatically
- SMT technology, high stability
- Stylish design
- Plug and play,easy installation
- Connecting WIFI by just one button
- Communication through local network or internet,either is OK
- Check valve manipulator status automatically
- Valve manipulator is controlled remotely
Product parameters
|
Working voltage |
AC100V~240V |
|
Average power consumption |
≤3W |
|
Warm-up time |
About 3 minutes |
|
Detected gas |
Natural gas(CH4) |
|
Alarm sensitivity |
6%LEL(±3%LEL) |
|
Alarm indication |
Red LED indicator flashes +voice prompt |
|
Fault indication |
Yellow LED indicator flashes+prompt |
|
Sound level |
≥70dB@1m |
|
Alarm mode |
Acousto-optic alarm |
|
Auxiliary output |
Valve manipulator output |
|
Valve manipulator jack output |
11~13V,500mA |
|
Networking |
WIFI-2.4GHz |
|
Working temperature |
-10℃~+55℃ |
|
Storage temperature |
-20℃~+60℃ |
|
Working humidity |
≤95%RH（no condensation） |
|
Installation |
Wall mounting,plug and play |
|
Dimension |
L89.5mm*W89.5mm*H38mm(plug not included) |
