PRODUCT INTRODUCTION

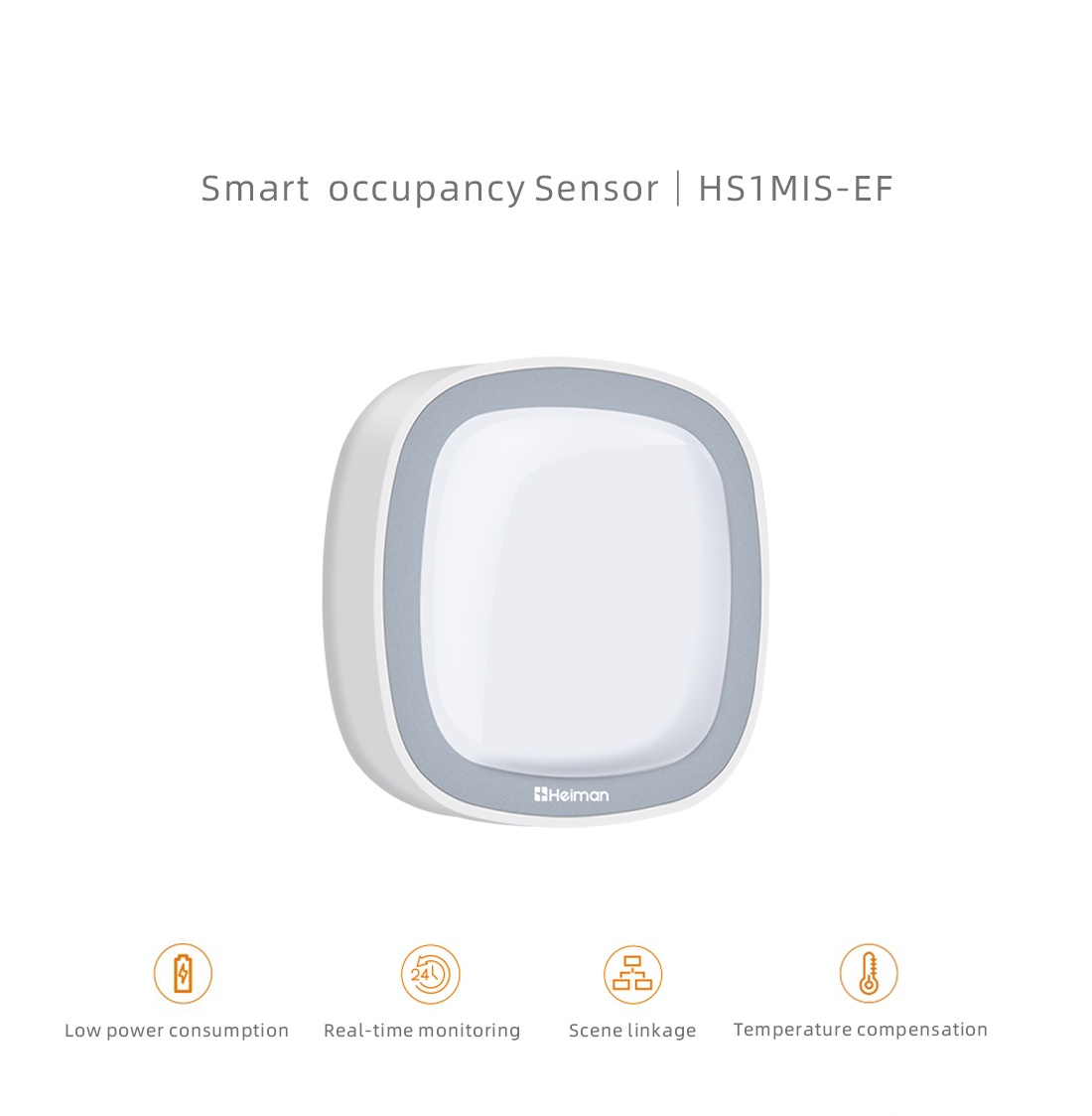

This Smart Occupancy Sensor, adopts super low power consumption zigbee wireless communication technology, is combined with many practical features. It could detect human movement and send notification to user APP.Besides, it could also establish linkage with switch to turn on/off the light by detecting the absence/presence of human movement and environment luminance lower/higher than preset luminance threshold value. Its automatic threshold adjustment technology greatly decreases false alarms:automatic temperature compensation technology efficiently prevents the sensor from decreasing in sensitivity resulted from the temperature changes.It is suitable for installation/application in residential buildings,villas, factories, shopping malls,warehouses,office buildings,banks,computer rooms and etc.
TECHNICAL PARAMETERS
Working Voltage |
DC3V(1*CR123A/CR17335 battery) |
Detecting angle |
90° |
Installation height |
2.1m |
Luminance measurement range |
0~40000 Lux |
Detecting distance |
Max .10m under 25°C(detecting distance varies depending on environment temperature) |
Networking |
Zigbee 3.0 |
Wireless networking distance |
Approx .70m(open area with no obstacle) |
Working temperature |
-10°C ~ +50°C |
Working humidity |
≤95%RH(no condensation) |
Battery life |
2 years(battery life varies depending on actual use) |
Dimensions |
65*65*28.5mm |
