First, about RFID

RFID(radio frequency identification) : Radio frequency identification. An automatic identification technology that uses radio frequency signals to pass through the space coupling of RFID (alternating magnetic field or electromagnetic field) to achieve non-contact information transmission, and through the transmitted information to achieve the purpose of identification. General use in regional personnel positioning has great advantages.

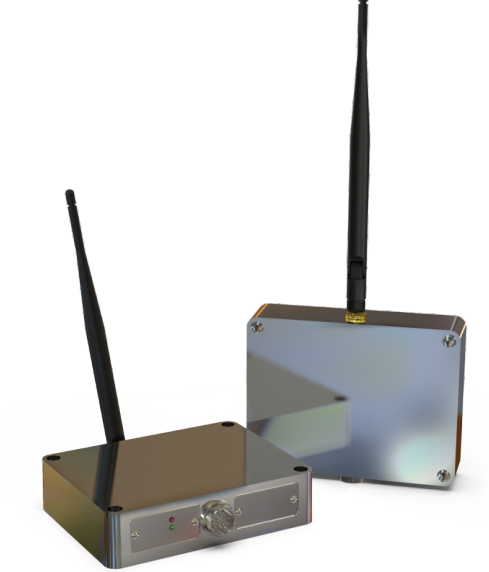

Second, product appearance

Three, product overview

The TD-PB16 omnidirectional positioning base station can not only be regarded as a 2.4G reader, but also has a 4-way network switch, which can connect the 4-way TD-PB16 omnidirectional reader and other network devices in series, and convert the data sent by the TD-PB16 and other network devices into the output from the network. It can accommodate a maximum of four network equipment input, through the network cable power supply to reduce the difficulty of field wiring, a power supply can be connected to more than four TD-PB16 omnidirectional reader devices, reducing equipment procurement costs. Application: Storage location monitoring, vehicle location tracking, schools, hospitals, prisons, nursing homes

Four, product characteristics

Supports four network switch ports

A single power supply can connect to multiple POE devices

The network has high data transmission speed and low power consumption

High performance and multi-function, easy system integration

Communication mode: TCP/IP

Communication interface: RJ45

Serial port: RJ45 single-cable installation in pipelined mode

Input-output interface: 4-way switch interface (adaptive 10M/100Mbps)

V. Specifications and parameters

Physical parameters

Overall dimensions 135mm*110mm*32mm

Product material metal

Product color Gray

The product weight is 580g

Packaging corrugated paper box (1 / box) (can be customized)

Environmental parameters

The operating humidity ranges from 5% to 95%

Operating temperature -20 ° C to +65 ° C

Storage temperature -40 ° C to +80 ° C

The performance parameters

Operating voltage DC12V ~ DC24V

Working current ≤350mA

Collision resistance can recognize 200 labels simultaneously

Identification distance open, no interference 40 meters distance adjustable

Operating frequency band 2.4GHz ~ 2.5GHz ISM microwave segment

The card reading speed is 0.2S

Modulation mode GFSK

Output power 19dBm (adjustable)

Receiving sensitivity -89dBm (adjustable)

The communication rate is 2Mbps

Communication mode TCP/IP

Communication interface RJ45

Serial port RJ45 Single-cable installation in pipelined mode

Input-output port 4-way switch port (adaptive 10M/100Mbps)

6. Antenna far field pattern

Horizontal direction diagram: vertical direction diagram:

Seven, matters needing attention

1. Do not put into the fire or store in a high temperature environment over 85 degrees!

2. Do not use sharp weapons damage.

3. Do not place near corrosive objects.

4. Please do not change the parameters, specifications, and models of components during maintenance.

5. Do not store labels in confined Spaces.

6. Do not collide the label violently.

7. Do not press the label with heavy force.

8. Application fields

1. Goods storage location monitoring

2. Vehicle location tracking

3. The school

Hospital of 4.

5. The prison

6. The nursing home

7. Rehab

8. Regional positioning

Network setting and communication methods

1. Methods of retrieving devices and updating device firmware and parameters through client tools:

Open the TdArmCoreFrm.exe tool and click the [Search device] button to read the network parameters of the device to be connected to the network. If you need to modify the network parameters, select the MAC address of the network device first, modify the network parameters of the device and then click the [Parameter Setting] button. If you need to upgrade the firmware, use the [Firmware update] button.
